NovaStar, MB254, Fully Automatic Vertical Mattress Handle Attaching Machine, Sewing Width 120 to 450mm, Capacity 4-6m/min (New)

NovaStar, MB254, Fully Automatic Vertical Mattress Handle Attaching Machine, Sewing Width 120 to 450mm, Capacity 4-6m/min

Description

  1. Overview
    1. Fully automatic vertical mattress handle attaching machine including label attachment and end sewing together
    2. Sewing width: 120 to 450 mm (4.7 inches to 17.7 inches)
    3. Sewing thickness: ≤25 mm (one inch)
    4. Production capacity: 4 to 6 m/min (7 to 8 yards per minute)
    5. Total power: 8 kW
    6. Power supply: 220 V

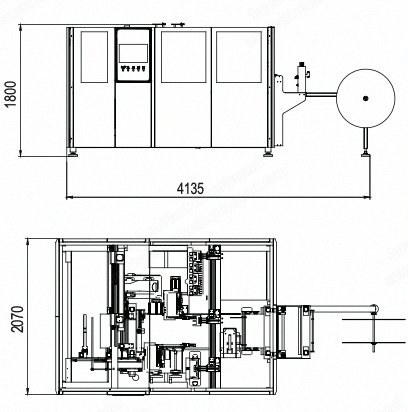

    7. Installation dimensions: 13.5 feet long x 6.8 feet wide
  2. Specifications
    1. Equipped with Pegasus and Brother machine sew heads with electrical components of top brands
    2. Powerful data storage system, one-click call of products of different specifications, convenient and simple operation
    3. Bus control system, programmable design interface, for efficient automatic production of mattress borders
    4. Easy to operate and has high production capacity
    5. The arrangement functions can be programmed in sequence or inserted in any order when inputting data; supports system to download order data for automatic production

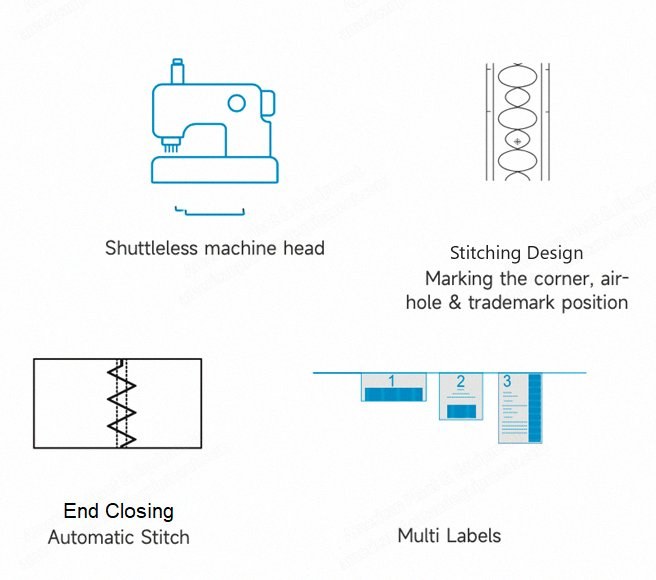

    6. Closed-loop automatic control machine integrates various functions processes such as sewing vertical handles, over-locking, labels and drawing lines, punching holes, automatic length measurement and splicing
    7. Includes x in a box design at each end of the handle
