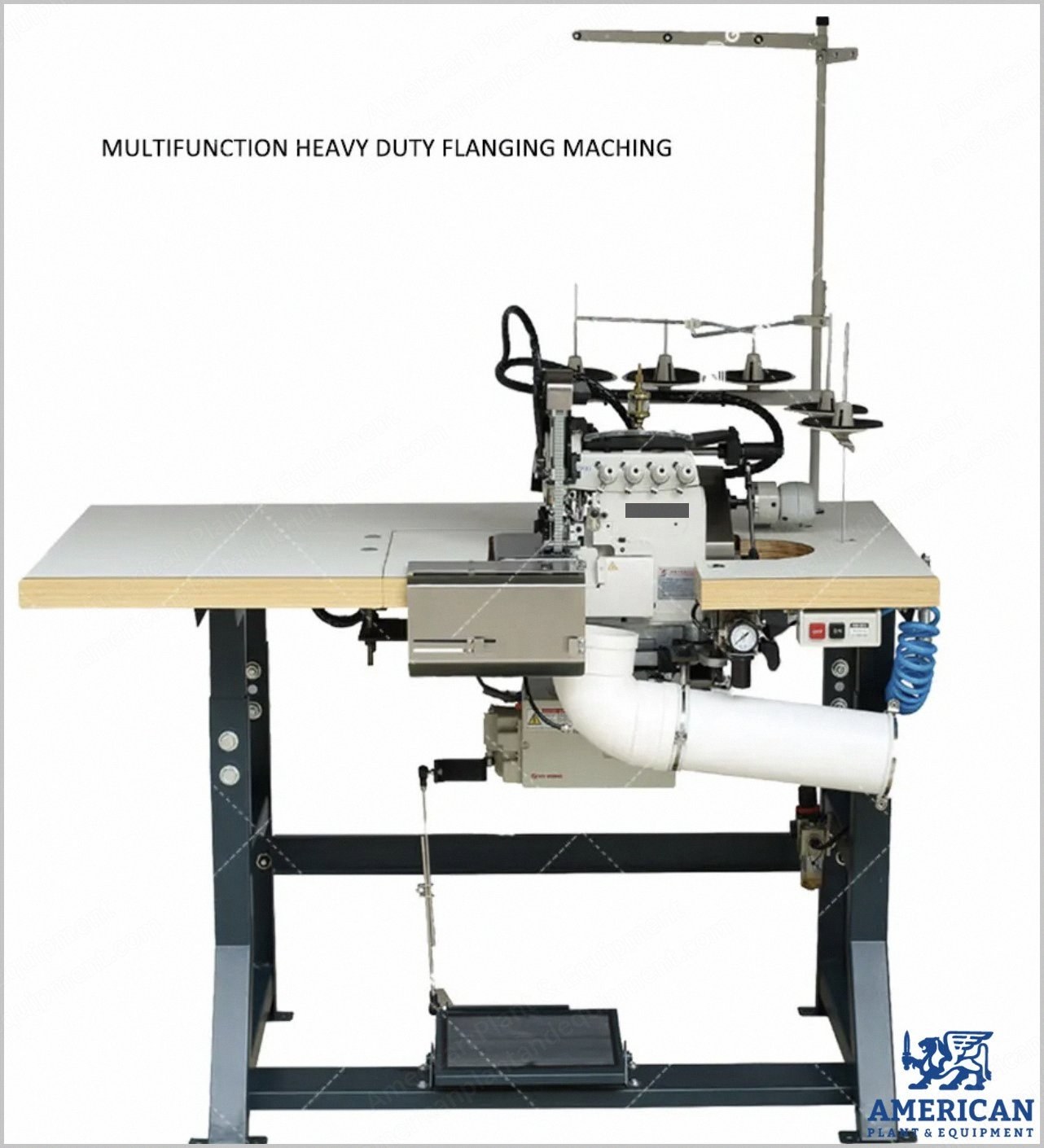

NovaStar, MB252, New, Mattress Flanging Overlock Heavy Duty Sewing Head Machine, 10-70mm Sewing Thickness, 4000 RPM, 220V (New)

NovaStar, MB252, New, Mattress Flanging Overlock Heavy Duty Sewing Head Machine, 10-70mm Sewing Thickness, 4000 RPM, 220V

Description

  1. Overview
    1. Multifunction flanging machine for mattress tape edge sewing
    2. Product name: Mattress tape edge sewing machine
    3. Mattress machine: Flanging machine
    4. Mattress thickness: 30mm – 550mm
    5. Weight: 180 kg
    6. Dimension (L x W x H): 1200 x 700 x 1000mm
    7. Packaging details: Wooden box
  2. Specifications
    1. Maximum sewing thickness: 10-70mm
    2. Type of sewing head: Juki 6900
    3. Press foot lift: 15mm
    4. Number of sewing threads: 5 thread
    5. Sewing stitch: 1-5mm
    6. Motor power: 0.55kW
    7. Faling width: 27mm
    8. Sewing bar type: Double bar
    9. Air pressure: 0.4-0.8MPa
    10. Maximum sewing speed: 4000RPM
    11. Voltage: 220V, 1P, 50-60Hz
    12. Power: 0.55kW
    13. Air pressure: 0.4 to 0.8MPa
  3. Features
    1. Synchronous feeding structure with excellent feeding performance, even very thick fabrics can go through easily while it often failed in other types of sewing machine
    2. Both thick and thin fabric can be easily processed
    3. Automatic cooling and lubrication system
    4. Taiwan servo motor / Mitsubishi servo motor (can be customized)
  4. Core Components
    1. PLC
  5. Warranty and Service
    1. Warranty: 1 year
    2. After warranty service: Service
