NovaStar, MB249, Sewing Speed 7 m/min, Border Width 190 to 450mm, 3 Phase 380V/220V (New)

NovaStar, MB249, Sewing Speed 7 m/min, Border Width 190 to 450mm, 3 Phase 380V/220V

Description

  1. Overview
    1. Mattress border sewing automatic production line for decorative tape and vertical handle
    2. Sewing speed: 7 m per min
    3. Border width: 190 to 450 mm
    4. Used for processing of mattress side border, multi-functional automatic production of border
    5. Fabric is stitched and decorated by a linear machine
    6. Automatic stitching of handle
    7. Automatic stitching of labels
    8. Automatic front and back seaming
    9. Automatic marking points such as trademark position, air hole position, corner position, etc.
    10. Automatic calculation of length
    11. Automatic cutting
    12. Automatic splicing interfaces
    13. Can save 60 mattress data of different sizes
    14. Saves 7 workers' operations
  2. Technical Parameters
    1. Front and back sewing head: Pegasus 5 lines
    2. Linear sewing machine: XDB-65 needle
    3. Sewing speed: 7 m/min
    4. Border width: 190 to 450 mm
    5. Stitch: 2 to 6 mm
    6. Border thickness: 3 to 25 mm
    7. Label width: 30 to 100 mm
    8. Label length: 40 to 140 mm
    9. Handle width: 45 to 70 mm
    10. Handle thickness: 3 to 12 mm
    11. Voltage power: 3 phase 380 V / 3 phase 220 V, 60 Hz, 6 kW
    12. Air pressure: 0.6 MPa
    13. Display: Schneider
    14. PLC: Panasonic
    15. Servo motor: Delta

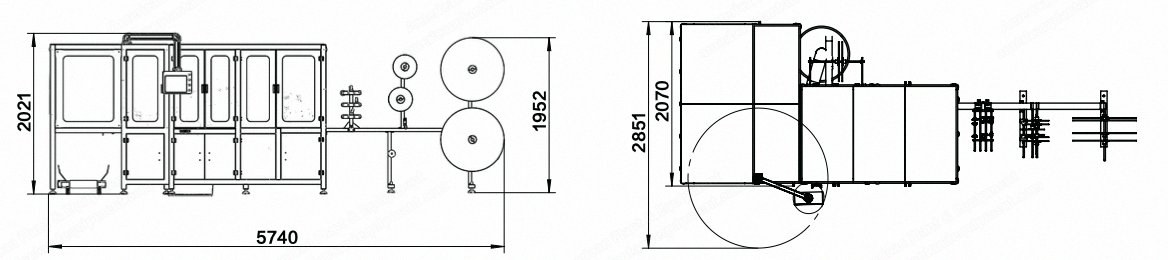

  3. Installation Dimension
    1. Refer to installation dimension diagram
