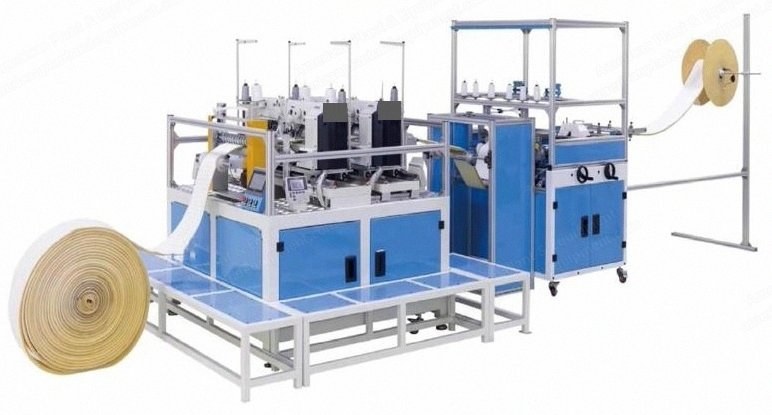

NovaStar, MB236, Combination Machine for Serging Border Sides and Computerized Border Quilting, 4-Head, 220V (New)

NovaStar, MB236, Combination Machine for Serging Border Sides and Computerized Border Quilting, 4-Head, 220V

Description

  1. Overview
    1. Complete line comprising two main items: a border side serging machine and a four-head computerized quilting machine
  2. Item 001: Border Side Serging Machine
    1. Sewing width: 5 to 7 mm
    2. Side-lock width range: 50 to 450 mm
    3. Side-lock speed: 15 to 30 meters per minute
    4. Sewing thickness: 25 mm maximum
    5. Needle stitches: 0 to 6 mm
    6. Total power: 1.5 kW
    7. Power supply: 220 volts, 50 Hz (or as per customer)
  3. Item 002: Four-Head Computerized Quilting Machine
    1. Designed for high quality inside patterns
    2. Head brand: Brother
    3. Maximum speed: 2000 rpm
    4. Sewing width: 400 mm (15.7 inches)
    5. Sewing thickness: 30 mm (1.18 inches)
    6. Linear speed: 1 to 5 meters per minute
    7. Needle stitch: 4 to 6 mm
    8. Total power: 3.0 kW
    9. Power supply: 220 volts, 50 Hz (or as per customer)
  4. Features
    1. Thread break detection alerts operator upon thread breakage
    2. Automatic marking
    3. Programmable length and quantity automatically stops machine when finished
    4. Touch screen controls
    5. Computer stores 58 patterns with ability to change parameters (you can draw new patterns as needed)
    6. Different quantity of dots can be chosen at will (2 to 6)
    7. Front and back automatic serging keeps border side straight and neat
    8. Servo-motor driven
    9. High quality linear guideway provides accurate stitch head movement and reduces wear
    10. Conforms to CE standards
