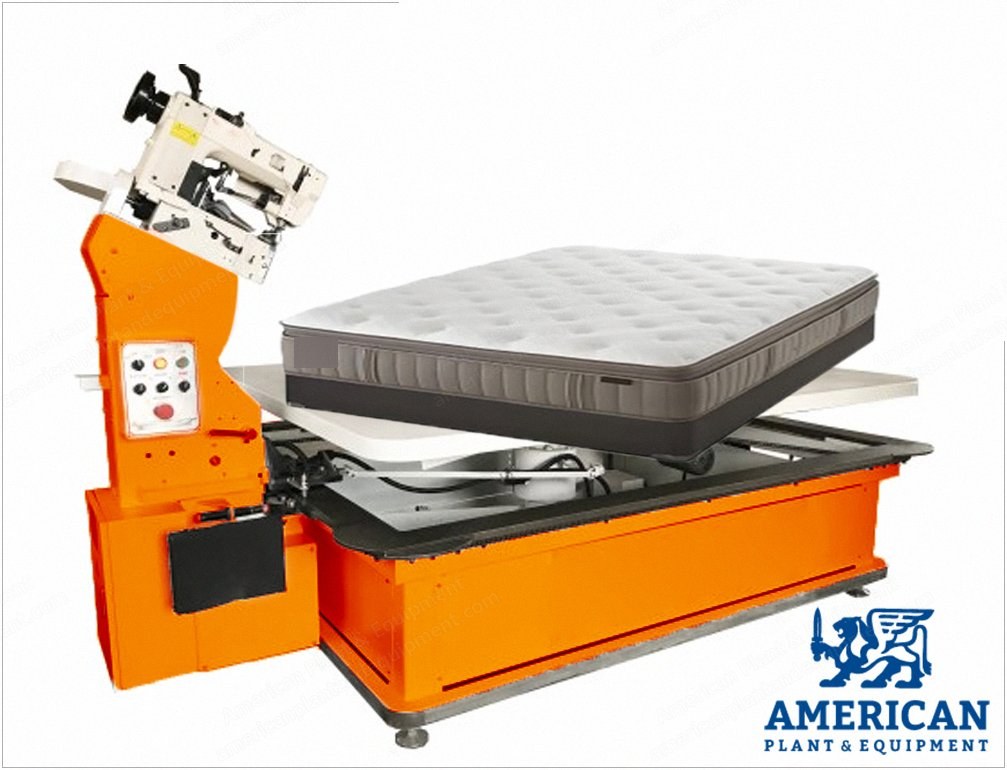

NovaStar, MB214, Mattress Tape Edge Machine, 1800x2000mm Table, 300U Chain Stitch (New)

NovaStar, MB214, Mattress Tape Edge Machine, 1800x2000mm Table, 300U Chain Stitch

Description

  1. Overview
    1. Sewing head work angle: 35° to 55°
    2. Walk carriage speed: 5.5 to 13.8 m/min
    3. Mattress thickness: 50 to 500 mm
    4. Table size: 1800 x 2000 mm (standard)
    5. Max. sewing head speed: 3000 rpm
    6. Work efficiency: 15 to 20 mattress/h
    7. Total power: 1.47 kW
    8. Sewing head tilt: electric
    9. Default: typical 300U sewing head
  2. Specifications
    1. Shipping weight: 5.0 cbm, 850 kg
  3. Included Parts
    1. Needles: 2 pack
    2. Hook: 1 unit
    3. Binder: 1 unit
    4. Driving belt: 2 units
    5. Button switch: 2 units
    6. Proximity switch: 1 unit
    7. Carbon brush: 5 units
    8. Maintenance tool: 1 kit
  4. Warranty
    1. Machine warranty time: 18 months (from the date of bl)
