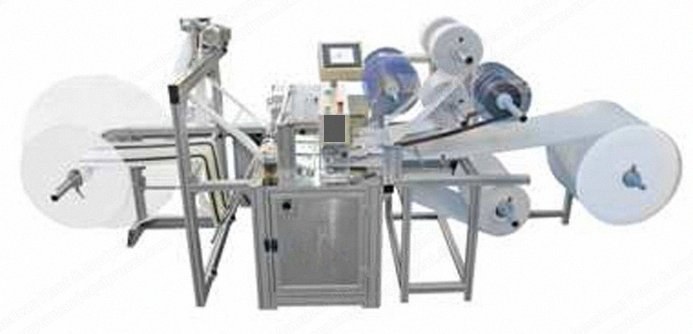

NovaStar, MB261, Ultrasonic Mattress Border Machine, 750mm Fabric Width, 10 m/min (New)

NovaStar, MB261, Ultrasonic Mattress Border Machine, 750mm Fabric Width, 10 m/min

Description

  1. Item 001 - U 220
    1. Dimensions: 3880mm x 1700mm x 1600mm
    2. Fabric width: up to 750mm
    3. Engraving area: 220mm
    4. Engraving device: 1500W 20kHz
    5. Generator: digital, auto tuning system
    6. Work speed: up to 10 m/min (depending on materials)
    7. Power supply: 220/240 V I + N
    8. Pneumatic: 6 bars
    9. Weight: 340 kg
    10. Power: 2.5 kW
    11. Cooling: yes, air pressure and ventilation
  2. Interface
    1. Screen: high resolution touch screen
    2. Software: multi-language
    3. Remote diagnosis: yes
    4. Production report: yes
  3. Accessories
    1. Materials support: 4 bars with plates for fabric, 3D fabric, ribbons, etc.
    2. Wadding support: central bar
    3. Backing support: central bar
    4. Winder: winder for finished bands
    5. Cutters: 2 ultrasonic cutters, adjustable
    6. Cutting devices: 150W 30kHz
    7. Generator: digital, auto tuning system
    8. Waste: waste material extractor
    9. Guides: guides to insert ribbons, guides to insert 3D fabric
  4. Item 002 - U 440
    1. Dimensions: 3880mm x 1700mm x 1600mm
    2. Fabric width: up to 750mm
    3. Engraving area: 440mm
    4. Engraving device: 1500W 20kHz
    5. Generator: digital, auto tuning system
    6. Work speed: up to 10 m/min (depending on materials)
    7. Power supply: 220/240 V I + N
    8. Pneumatic: 6 bars
    9. Weight: 360 kg
    10. Power: 3.3 kW
    11. Cooling: yes, air pressure and ventilation
  5. Interface
    1. Screen: high resolution touch screen
    2. Software: multi-language
    3. Remote diagnosis: yes
    4. Production report: yes
  6. Accessories
    1. Materials support: 4 bars with plates for fabric, 3D fabric, ribbons, etc.
    2. Wadding support: central bar
    3. Backing support: central bar
    4. Winder: winder for finished bands
    5. Cutters: 2 ultrasonic cutters, adjustable
    6. Cutting devices: 150W 30kHz
    7. Generator: digital, auto tuning system
    8. Waste: waste material extractor
    9. Guides: guides to insert ribbons, guides to insert 3D fabric
  7. Shipping Dimensions
    1. Wooden box: 2 meters x 2 meters x 1.75 meters (approx.)
    2. Weight: 400 kg (machine) + 80 kg (box) = approx. 500 kg
