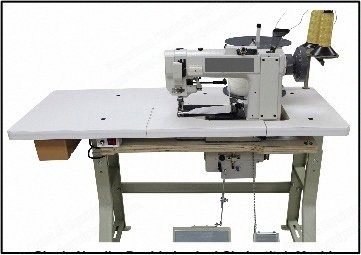

Union Special, XUSHC-300, Half Capping and Panel Binding Workstation, 2500 RPM, 12.7mm to 127mm Material Thickness (New)

Union Special, XUSHC-300, Half Capping and Panel Binding Workstation, 2500 RPM, 12.7mm to 127mm Material Thickness

Description

  1. Overview
    1. Several improvements compared to the older 300ux-5 machines
    2. New design for heavier materials
    3. Single-sided bed binder system
    4. Multi-tasking machine adds tape and flange in the same process
    5. Redesigned feed rocker frame
    6. Increased eccentric of needle bar crank
    7. Lifting presser foot thinner to avoid contact between needle bar and presser foot
    8. Needle and presser bar have nano coating applied
    9. Biggest advantage: you only flip the mattress once
    10. Tape edging is cut in half
    11. Union special looper
    12. Check spring added to needle thread to improve thread control
    13. Single chainstitch with walking foot
  2. Specifications
    1. Material: ½” to 5” (12.7 mm to 127 mm)
    2. Speed: 2500 rpm @ 5 spi
    3. Footprint: 48” x 20” (1.2 meters x 0.5 meters)
    4. Presser foot height: ½” (12.7 mm)
    5. Yield: 200 ± buckets (per shift)
