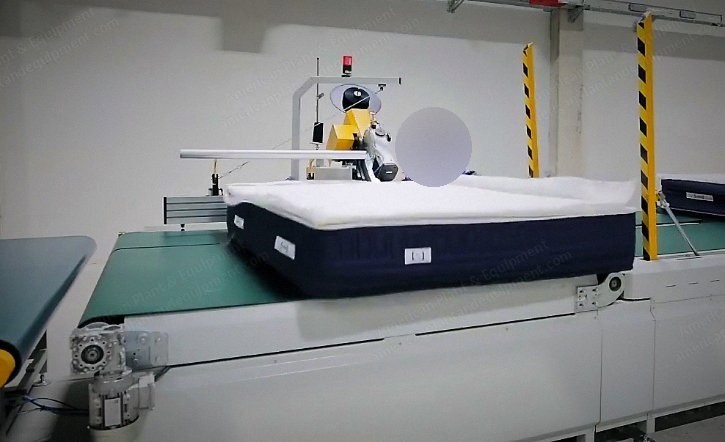

NovaStar, KYK-S2, Automatic Tape Edge Machine, Pfaff 5265 Sew Head, 2200x2200mm Max Mattress Size, Heavy Duty Mattress Flip System (New)

NovaStar, KYK-S2, Automatic Tape Edge Machine, Pfaff 5265 Sew Head, 2200x2200mm Max Mattress Size, Heavy Duty Mattress Flip System

Description

  1. Overview
    1. High quality Pfaff 5265 sew head – chain-stitch with pneumatic foot lift
    2. Maximum sewing speed: 3500 rpm
    3. Capacity: 180 to 250 mattresses (depending on operator capability, performance and mattress type)
    4. Maximum conveyor speed: 40 meters per minute
    5. Maximum mattress size: 2200 mm x 2200 mm
    6. Mattress height: 750 mm to 420 mm
  2. Specifications
    1. Standard tape folder: 42 mm (all standard sizes available, specify when ordering)
    2. Anti-static polyurethane conveyor belt
    3. 4 sections conveyors to help the turning of the mattress at corners
    4. Automatic sewing head height and angle adjustment
    5. Variable speed adjustment to optimize corner performance
    6. Heavy duty mattress flip system
    7. Lifelong independent motor driven conveyors (no transmission parts between conveyor parts)
    8. Completely automatic control with single pedal, with automatic slow-down and cornering
    9. Automatic needle up system
    10. Adjustable stitch length
    11. Sturdy structure
