Description
-
Overview

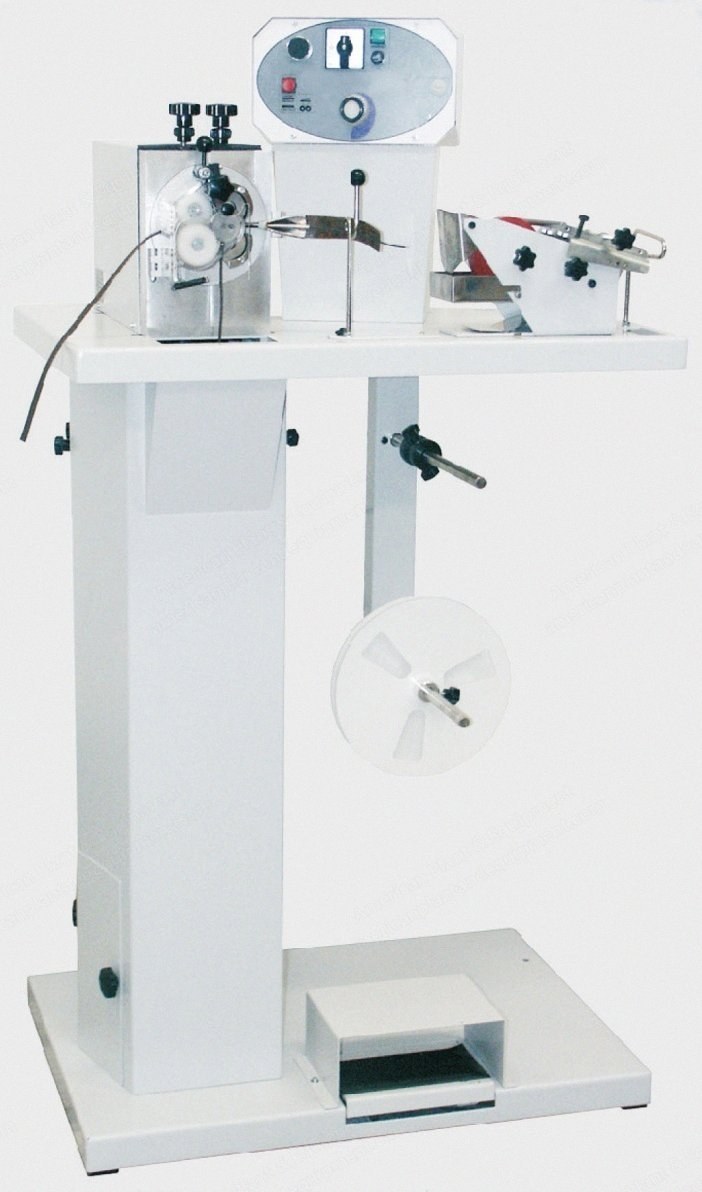

- Designed for the production of profiles with a core used as a seal in bags, sofas, car seats, etc.
- The machine automatically glues the webbing with latex, inserts the rubber or rope core inside, and trims it to the desired size.
- The finished profile is also automatically cut perpendicularly to make the next application easier.
- Machine is operated with a pedal for intermittent operation.
- Incorporates an electronic speed variator.
- It registers the pressure of the transport rollers.
- Incorporates an adjustable clutch and a double-rod roll holder.
- It is equipped with a folder for 20 to 22 mm strips to produce standard ø3 to 5 mm profiles with ø2 mm and 8 mm cores.
- Equipped with a start button, safety fuses and protective cover.
- It is also available in upholstery version.
-
Specifications
- Size: 750 x 540 x 1380 mm
- Weight: 85 kg
- Speed max: 2100 meters per hour
- Voltage: 230/400 volts
- Power: 150 W
